Glass Facade vs Curtain Wall: What's the Difference for Commercial Buildings in Malaysia?

If you are planning a commercial building project in Malaysia, two terms you will often hear from architects and glazing contractors are glass facade and curtain wall. While they may look similar from the outside, these two glazing systems are very different in terms of structure, purpose, cost, and installation method.

Understanding the difference between a glass facade and a curtain wall system is essential before you start any construction or renovation project. This guide breaks down both systems clearly, so you can make the right decision for your building in Kuala Lumpur, Selangor, Penang, or anywhere else in Malaysia.

What Is a Glass Facade?

A glass facade refers to the outer glass covering or cladding of a building. It is typically a decorative and functional skin applied to the exterior structure. A glass facade can be installed as a stand-alone feature or as part of a renovation to give an existing building a modern, sleek appearance.

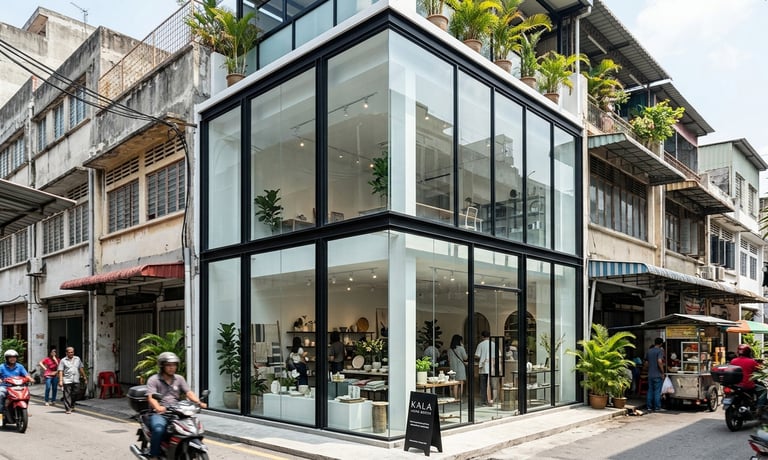

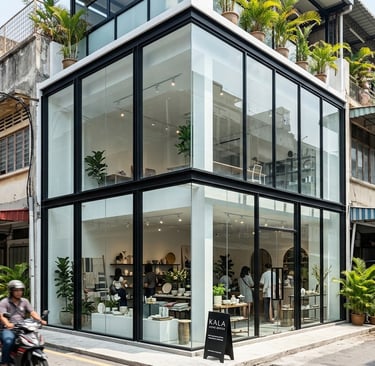

In Malaysia, glass facades are commonly seen on shophouses that have been modernised, small commercial buildings, retail outlets, and corporate offices that want to upgrade their exterior without a full structural overhaul.

What Is a Curtain Wall System?

A curtain wall is a non-structural outer wall system that is anchored to the building's structural frame, typically the floor slabs or columns. Unlike a glass facade, a curtain wall is an engineered system designed to resist wind loads, water infiltration, and thermal movement. It literally hangs like a curtain from the building's structure, hence the name.

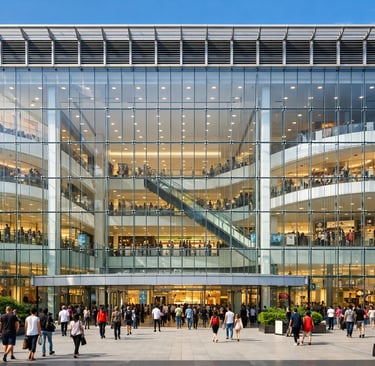

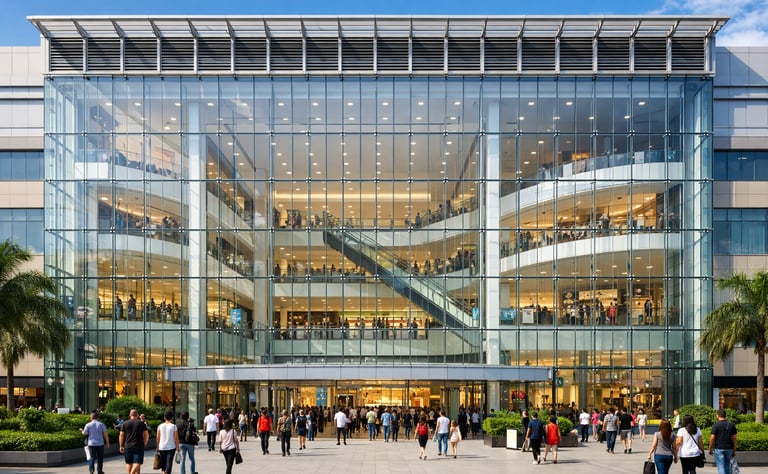

Curtain wall systems are standard in high-rise commercial buildings, office towers, shopping malls, hospitals, airports, and government buildings across Malaysia. They span across multiple floors and are factory-manufactured for precision installation on site.

Key Differences: Glass Facade vs Curtain Wall

Here is a clear breakdown of how glass facades and curtain walls differ:

• Structure: A glass facade is a cladding applied to an existing structure. A curtain wall is an independent

  load-bearing skin anchored to the structural frame.

• Load bearing: Glass facades carry only their own weight. Curtain walls are engineered to handle wind pressure, thermal expansion, and seismic movement.

• Spans: Glass facades typically cover one floor or a single section. Curtain walls span continuously across multiple storeys.

• Cost: Glass facades are generally more affordable and suited for smaller projects. Curtain walls involve higher upfront costs but offer superior long-term performance.

• Installation: Facade cladding can often be retrofitted. Curtain wall systems require careful engineering and are usually specified during the initial building design phase.

• Water and weather resistance: Curtain walls have more advanced weatherproofing systems including thermal breaks, drainage channels, and pressure-equalised cavities. Glass facades may require additional sealing and maintenance.

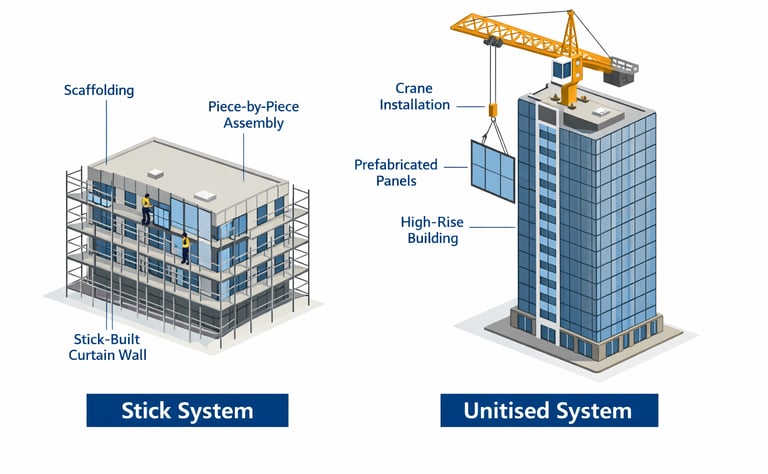

Types of Curtain Wall Systems Used in Malaysia

There are two main types of curtain wall systems used in commercial construction in Malaysia:

Stick System: Individual components (mullions, transoms, and glass panels) are assembled piece by piece on-site. This is the more traditional method and is commonly used for mid-rise office buildings in Klang Valley.

Unitised System: Prefabricated panels are manufactured off-site in a controlled factory environment and then craned into position on the building. Unitised systems offer faster installation, better quality control, and are preferred for high-rise projects like KLCC-area towers and Penang waterfront developments.

Glass Facade or Curtain Wall: Which Is Right for Your Malaysian Project?

Choosing between a glass facade and a curtain wall system depends on your building type, budget, and performance requirements. Here is a simple guide:

• Choose a Glass Facade if: You are renovating an existing building and want a modern exterior update. Your project is a low-rise or single-storey commercial unit. Budget is a priority and structural performance is less critical.

• Choose a Curtain Wall if: You are designing a new multi-storey commercial building, office tower, or mixed-use development. You need superior weather resistance, thermal performance, and structural integrity. Your building must comply with Malaysia's Green Building Index (GBI) or LEED energy efficiency standards.

Frequently Asked Questions (FAQ)

Is a curtain wall the same as a glass facade?

No. A curtain wall is an engineered glazing system anchored to the building frame across multiple floors. A glass facade is a decorative glass cladding that covers the exterior of a building but does not carry structural loads in the same way. A curtain wall is a type of facade, but not all glass facades are curtain walls.

How much does a curtain wall cost in Malaysia?

Curtain wall pricing in Malaysia varies widely depending on the glass type, system complexity, building height, and scope of work. As a general guide, basic stick system curtain walls can range from RM180 to RM350 per square metre, while premium unitised systems with high-performance glass can exceed RM500 per square metre. Always request a detailed quotation from a certified glazing contractor.

Can a glass facade be upgraded to a curtain wall later?

In most cases, a glass facade cannot simply be upgraded to a curtain wall without major structural modifications. Curtain walls require connection points at every floor slab and are designed to manage structural loads differently. If you anticipate needing curtain wall performance in the future, it is better to plan for it during the initial building design stage.

Get Expert Glazing Advice from YNL Bina in Malaysia

At YNL Bina Sdn Bhd, we have over 20 years of experience in glazing, glass facade installation, and curtain wall contracting across Kuala Lumpur and Penang. Whether you are a developer, architect, or business owner looking to enhance your commercial building, our team can guide you on the right glazing system for your specific project and budget.

Contact us today for a free site visit and quotation. Call us at +60126365576 or email ynlbina99@gmail.com. Trusted by over 500 clients across Malaysia for quality glazing solutions that last.
